| Quartzlock launch the next instrument in their slim-line bench range of RF distribution amplifiers.

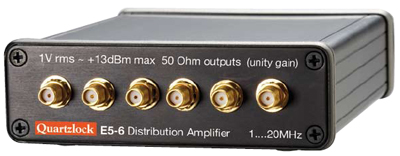

The E5-6, based on the A5000 rack mount instrument, provides the same outstanding performance of its bigger brother but in a compact 105(w) x 125(d) x 30(h) mm form factor.
This instrument has excellent short term stability and phase noise performance ensuring that there is no derogation of the source signal. This instrument provides excellent value for money. |
Features
- A5 design criteria for stability and low noise
- All outputs synchronised
- A5...4 output OEM modules provide multiple outputs of input frequency
- 24v DC or 90...240v AC operation
- 1 Hz / 1pps sync input
|
Benefits
- +13dBm output level
- +6dBm to +12dBm
- High stability
- Low distortion
- High isolation
|
Applications – fixed & portable use in
- Industrial calibration laboratories
- Telecoms
- Test solutions
- RF test bench
- Production test
|
Standard Specification
Output Level
|
10dBm |
Number of Outputs
|
6 |
STS1s
|
2 x10-13 |
| STS10s |
2x10-14 |
STS100s
|
5x10-15 |
| Phase Noise |
1Hz 115dBc |
| Phase Noise |
10Hz 145dBc |
| Phase Noise |
100Hz 146dBc |
| Phase Noise |
1kHz 147dBc |
| Phase Noise |
10kHz 147dBc |
Spurious dBc
|
100dBc |
PSU Nominal
|
12V |
PSU Min
|
11V |
| PSU Max |
14V |
| Supply |
DC | |
Product Options
This product can have the following options applied to change its specification |
Option N - No Options Available |
|
|
| |
| | |
